QDI Buffer - A More complicated example

Introduction

In this example we will generate an asynchronous circuit built using pipelined 4-phase handshake circuits that are quasi-delay-insensitive (QDI).

Communication protocol

In our example, two buffers communicating a 1-bit data value using a 4-phase handshake will use a bundle of three wires consisting of:

  • two data rails (a true and false rail)
  • an acknowledge (or enable) wire
flowchart LR
BUF1-- t --> BUF2
BUF1-- f --> BUF2
BUF2-- e --> BUF1

We will use return-to-zero signaling on the data wires. So, for example, to send a value of 1 from BUF1 to BUF2, we would do the following:

sequenceDiagram
    participant BUF1
    Note right of BUF1: Reset with t,f low and e high
    BUF1 ->> BUF2: Raise t wire
    BUF2 -->> BUF1: Lower e wire
    BUF1 ->> BUF2: Lower t wire
    BUF2 -->> BUF1: Raise e wire
    Note right of BUF1: Back at initial state with t,f low and e high

Circuit implementation of a Buffer

We will use a simple implementation of a weak-conditioned-half-buffer(WCHB) handshake circuit to implement BUF1, shown in the schematic below. The circle with a 'C' represents a Muller Consensus or C-element which is a dynamic gate that sets its output value to the input value when both inputs are the same.

wchb

Building blocks

First, let's take a look at how we build the individual gates in the WCHB schematic.

Parametrized Inverter

Although we saw a simple inverter previously, this time we're going to show you how to build a parametrized inverter based on its sizes and vt choices.

This inverter is built in to the standard gates library, but let's take a look at the implementation:

wchb_inverter.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
from circuitbrew.compound_ports import SupplyPort
from circuitbrew.ports import InputPort, OutputPort
from circuitbrew.fets import Nfet, Pfet
from circuitbrew.module import Module, Parameterize, Param

class Inv(Module):
    inp = InputPort()
    out = OutputPort()

    p = SupplyPort()

    n_strength : Param
    p_strength : Param
    vt         : Param

    def build(self):

        self.pup = Pfet(w=self.p_strength, vt=self.vt,
                        g=self.inp, d=self.p.vdd, s=self.out, b=self.p.vdd)
        self.ndn = Nfet(w=self.n_strength, vt=self.vt,
                        g=self.inp, d=self.p.gnd, s=self.out, b=self.p.gnd)

        self.finalize()

    async def sim(self):
        while True:
            val = await self.inp.recv()
            await self.out.send(1-val)

class Main(Module):
    def build(self):
        Inv_x3 = Parameterize(Inv, p_strength=3, n_strength=3, vt='svt')
        self.inv = Inv_x3()
        self.finalize()

Adding parameters to a Module is done in the following way:

  • Add each parameter as a type annotation (Param)
  • Use the parameters as a regular Python attribute in your build method

When you want to use the parametrized Module, you call Parametrize on the Module you want with the parameter values, which will return a new Module (class) that you can then instance. If you don't want to keep around the parametrized class for more instances, you could also simply do:

    self.inv = Parameterize(Inv, p_strength=3, n_strength=3, vt='svt')()

Parametrized NOR

Now let's take a look at a different use for parameters: Specifying the width of a port.

We've already seen how to do a 2-input NOR, but what if we want to build a generic N-input NOR? Well, we need to first declare N as a Param. But how do we pass this into the InputPorts as the width, since it hasn't been defined yet? The way we do this is by using Param as a placeholder function with the name of the parameter:

wchb_nor2_01.py
1
2
3
4
5
6
class NorN(Module):
    N: Param

    a = InputPorts(width=Param('N'))
    b = OutputPort()
    p = SupplyPort()

Once Parameterize is called with the actual value for N, it will resolve itself when a is accessed for the first time. The rest of the implementation of NorN just needs to use self.N in an appropriate way to build the circuit like so:

wchb_nor2_02.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
from circuitbrew.compound_ports import SupplyPort
from circuitbrew.ports import InputPorts, OutputPort
from circuitbrew.module import Module, Parameterize, Param

class NorN(Module):
    N: Param
    size: Param

    a = InputPorts(width=Param('N'))
    b = OutputPort()
    p = SupplyPort()


    def build(self):
        p = self.p
        N = self.N
        pdn = self.a[0]
        pup = ~self.a[0]

        for i in range(1,N):
             pdn |= self.a[i]
             pup &= ~self.a[i]

        self.nor = self.make_stacks(output=self.b,
                                    pdn=pdn, pup=pup, power=p,
                                    width=self.size)
        self.finalize()

class Main(Module):
    def build(self):
        Nor3 = Parameterize(NorN, N=3, size=2)
        self.nor3 = Nor3()
        self.finalize()

Here, you can see how we used the | and & operators in a loop to construct the CMOS stacks.

The resulting SPICE looks like

.subckt Main
xNorN_N_3_size_2_inst_0 a_0 a_1 a_2 b_3 p_4 p_5 NorN_N_3_size_2
.ends


.subckt NorN_N_3_size_2 a[0] a[1] a[2] b p.gnd p.vdd
xmn0 b a[1] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=2 l=0.5
xmn1 b a[0] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=2 l=0.5
xmn2 b a[2] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=2 l=0.5
xmp0 d_0 a[0] b p.vdd sky130_fd_pr__pfet_01v8_lvt w=2 l=0.5
xmp1 d_1 a[1] d_0 p.vdd sky130_fd_pr__pfet_01v8_lvt w=2 l=0.5
xmp2 p.vdd a[2] d_1 p.vdd sky130_fd_pr__pfet_01v8_lvt w=2 l=0.5
.ends

Notice that the parameterized Nor sub-circuit has its parameter values inserted into the name. If another Nor is parameterized (say with N=4), then it will have a different sub-circuit definition with N_4 in the name.

C-element

The c-element will be a state-holding gate, with the pull-up and pull-down both just having the two terms in series. We will use combinational feedback to maintain the output when the inputs disagree in value.

wchb_c2_01.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
from circuitbrew.compound_ports import SupplyPort
from circuitbrew.ports import InputPorts, OutputPort
from circuitbrew.module import Module, Parameterize, Param

from .wchb_inverter_01 import Inv

class Celement2(Module):
    i = InputPorts(width=2)
    o = OutputPort()
    p = SupplyPort()

    def build(self):
        p = self.p
        # Let's constnnruct this using combination feedback
        pdn = self.i[0] & self.i[1]
        pup = ~self.i[0] & ~self.i[1]

        self.inv = Parameterize(Inv, n_strength=2, p_strength=2, vt='lvt')(out = self.o, p = p)
        _o = self.inv.inp

        cf_pdn = self.o & (self.i[0] | self.i[1])
        cf_pup = ~self.o & (~self.i[0] | ~self.i[1])

        self.celem = self.make_stacks(output=_o, pdn=pdn, pup=pup, power=p)
        self.cf    = self.make_stacks(output=_o, pdn=cf_pdn, pup=cf_pup, power=p)

        self.finalize()


class Main(Module):
    def build(self):
        self.c2 = Celement2()
        self.finalize()

Putting it all together

Assembling the WCHB

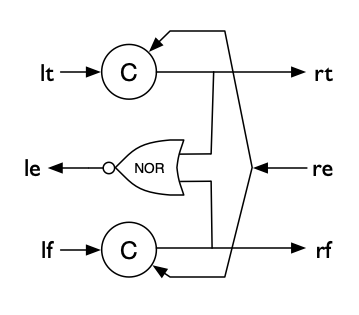

Let's construct the full WCHB circuit, with all of these building blocks.

wchb_01.py
from random import randint
from circuitbrew.module import Module, Parameterize
from circuitbrew.ports import InputPort
from circuitbrew.compound_ports import SupplyPort, E1of2InputPort, E1of2OutputPort
from circuitbrew.gates import NorN
from circuitbrew.gates import Inv_x1 as Inv

from circuitbrew.qdi import Celement2

class Wchb(Module):
    l = E1of2InputPort()
    r = E1of2OutputPort()
    _pReset = InputPort()
    p = SupplyPort()

    def build(self):

        self.c2_t = Celement2(i=[self.l.t, self.r.e], o = self.r.t, p=self.p)
        self.c2_f = Celement2(i=[self.l.f, self.r.e], o = self.r.f, p=self.p)
        self.inv_mypreset = Inv(inp=self._pReset, p=self.p)
        mypreset = self.inv_mypreset.out

        self.nor = Parameterize(NorN, N=3)(a=[self.r.t, self.r.f, mypreset],
                                           b=self.l.e, p=self.p)
        self.finalize()

    async def sim(self):
        while True:
            val = await self.l.recv()
            await self.r.send(val)

We have added a reset signal to the schematic, just to make sure this circuit resets to a known state in the handshake. The simulation method is quite straightforward, since it's just a pipelined buffer.

Buffer chain

For the SPICE simulation, we're going to build a parameterized chain of buffers. We will also use src and bucket modules that can drive e1of2 ports.

graph LR
    src --> buf_0;
    buf_0 --> buf_1;
    buf_1 --> buf_2;
    buf_2 --> buf_3;
    buf_3 --> bucket;
wchb_02.py
from random import randint
from circuitbrew.module import Module
from circuitbrew.elements import Supply, ResetPulse
from circuitbrew.qdi import Wchb, VerilogBucketE1of2, VerilogSrcE1of2

class Main(Module):
    def build(self):
        self.supply = Supply('vdd', self.sim_setup['voltage'],
                             measure=True )
        self.p = self.supply.p
        p = self.supply.p
        self._preset_pulse = ResetPulse('preset', p=p)
        self._sreset_pulse = ResetPulse('sreset', p=p)


        _pR = self._preset_pulse.node

        # Set up a chain of wchbs
        N = 4
        self.buf = [ Wchb(f'wchb_{i}', _pReset=_pR, p=p)
                        for i in range(N)
                    ]
        # Connect the wchbs
        for i in range(1,N):
            self.buf[i].l = self.buf[i-1].r

        _sR = self._sreset_pulse.node
        l = self.buf[0].l
        r = self.buf[N-1].r

        self.src = VerilogSrcE1of2(
            name = 'src', values=[randint(0,1) for i in range(10)],
            _pReset=_pR, _sReset= _sR)
        self.src.l = self.buf[0].l

        self.buc = VerilogBucketE1of2(
            name='buc',
            _pReset=_pR, _sReset=self._sreset_pulse.node, l=r)

        self.finalize()

It becomes quite simple to build complex SPICE structures in CircuitBrew with Python's powerful syntax; here, we're instantiating a chain of buffers in a for loop and connecting them in a generic way.

The generated SPICE file is shown below:

wchb_02.sp
*
.option brief=1
.lib "/Users/virantha/dev/circuitbrew/skywater-pdk-libs-sky130_fd_pr/models/sky130.lib.spice" tt
.option brief=0
.option scale=1e-6
*---------------------------------------
.temp 85
.param voltage=1.8
.option post

.subckt Main
Vpwlpreset _pR p.gnd PWL (0n 0 4n 0 4.5n 1.8)
Vpwlsreset _sR p.gnd PWL (0n 0 4n 0 4.5n 1.8)
xbuc _pR _sR r.t r.f r.e VerilogBucketE1of2_0
xwchb_0 _pR l.t l.f l.e p.vdd p.gnd r_0 r_1 r_2 Wchb
xwchb_1 _pR r_0 r_1 r_2 p.vdd p.gnd r_3 r_4 r_5 Wchb
xwchb_2 _pR r_3 r_4 r_5 p.vdd p.gnd r_6 r_7 r_8 Wchb
xwchb_3 _pR r_6 r_7 r_8 p.vdd p.gnd r.t r.f r.e Wchb
xsrc _pR _sR l.t l.f l.e VerilogSrcE1of2_0
xvdd p.vdd p.gnd Supply
.ends


.subckt Supply p.vdd p.gnd
.measure TRAN supplycurrent0 avg i(Vvdd_vdd)
.measure TRAN supplypower0 PARAM='-supplycurrent0*1.8'
.measure TRAN supplypower_direct0 AVG P(Vvdd_vdd)
Vvdd_vss p.gnd 0 0.0
Vvdd_vdd p.vdd 0 1.8
.ends

.subckt Wchb _pReset l.t l.f l.e p.vdd p.gnd r.t r.f r.e
xCelement2_inst_1 l.f r.e r.f p.vdd p.gnd Celement2
xCelement2_inst_0 l.t r.e r.t p.vdd p.gnd Celement2
xInv_p_strength_1_n_strength_1_vt_svt_inst_0 _pReset mypreset p.vdd p.gnd Inv_p_strength_1_n_strength_1_vt_svt
xNor3_inst_0 r.t r.f mypreset l.e p.vdd p.gnd Nor3
.ends

.subckt Celement2 i[0] i[1] o p.vdd p.gnd
xmn0 t228_0 i[0] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmn1 _o i[1] t228_0 p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmp0 d_0 i[0] _o p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmp1 p.vdd i[1] d_0 p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmn2 t255_0 i[1] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmn3 d_1 i[0] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmn4 _o o t255_0 p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmp2 d_2 o _o p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmp3 d_3 i[0] d_2 p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmp4 p.vdd i[1] s_4 p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xInv_p_strength_1_n_strength_1_vt_svt_inst_1 _o o p.vdd p.gnd Inv_p_strength_1_n_strength_1_vt_svt
.ends

.subckt Inv_p_strength_1_n_strength_1_vt_svt inp out p.vdd p.gnd
xmn0 p.gnd inp out p.gnd sky130_fd_pr__nfet_01v8_lvt w=1 l=0.5
xmp0 p.vdd inp out p.vdd sky130_fd_pr__pfet_01v8_lvt w=1 l=0.5
.ends

.subckt Nor3 a[0] a[1] a[2] b p.vdd p.gnd
xmn0 b a[1] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmn1 b a[0] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmn2 b a[2] p.gnd p.gnd sky130_fd_pr__nfet_01v8_lvt w=1.0 l=0.5
xmp0 d_0 a[0] b p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmp1 d_1 a[1] d_0 p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
xmp2 p.vdd a[2] d_1 p.vdd sky130_fd_pr__pfet_01v8_lvt w=1.0 l=0.5
.ends

.hdl template_0_hspice_src_1of2.va
.hdl template_0_hspice_bucket_1of2.va

xmain Main

.tran 1p 10n

.end

The waveforms from the resulting simulation are shown below, with the l.t and l.f input rails and the shifted versions r.t and r.f at the end of the chain of buffers. SPICE
